ACCREDITED TEST LABORATORY




Click to download Test Request Form

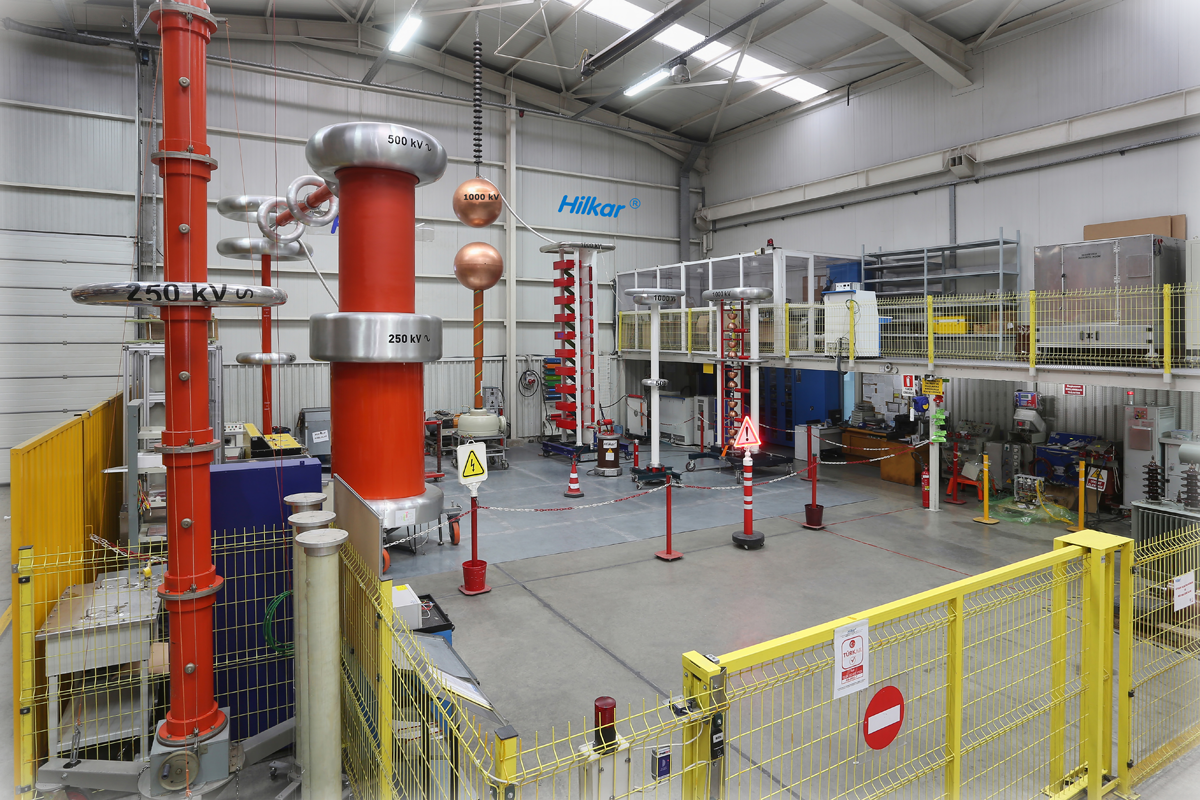

Hilkar High Power and High Voltage Test Laboratory is a state-of-art test facility that provides accredited and non-accredited testing services



Main test facilities are as follows:



  • Lightning Impulse Test System up to 1000 kV
  • Chopping Impulse Test System up to 1000 kV
  • Switching Impulse Test System up to 900 kV
  • High Voltage Test System up to 500 kV @50-60 Hz
  • High Voltage Test System up to 150 kV @150 Hz & up to 50 kV @400 Hz
  • Induced Voltage Test System up to 150 kV @150 Hz & up to 50 kV @400 Hz
  • Partial Discharge System up to 100 kV @50-150 Hz
  • Radio Influence Voltage (R.I.V.) Test System up to 500 kV @50-60 Hz
  • High Voltage Test System up to 200 kV DC
  • Temperature Rise Test System up to 35 MW continuous
  • Short Circuit Test up to 25 kA / 1 second
  • Short Circuit Switching Test System up to 25 kA / 1 second
  • High Current Injection Test System up to 3 Phase 6000 A 35 V at 50/60Hz and 4000A 1000V DC continuous with Computerized Data Logging
  • Induced Current Switching Test up to 12 kV 80 A
  • Impedance Measurement between 20 Hz - 5 MHz
  • Electric Field Measurement 0-2000 V/m 0-100 kHz
  • Protection Degree Testing: Solid & Water Jet testing
  • Noise Measurement & Data Logging
  • LV and MV Current & Voltage Transformer Testing
  • Overcurrent and Over-voltage Relay Testing
  • Thermal Camera Tests
  • Vibration Table and Measurement System
  • Capacitive Load Bank up to 10.000 kVAr
  • Insulation Resistance Test
  • Resistance Measurement by microohmmeter up to 50A
  • Hardness Measurement
  • 12 MW continuously rated controlled power source to test at full load and under simulated cyclic conditions of load banks, starting & braking resistors, reactors, special transformers
  • And more ...





Hilkar Test Laboratory is accredited as per ISO / IEC 17025, and provides testing services with a wide spectrum of electrical, mechanical and thermal tests for customers worldwide

Accreditation Number AB-0665-T



Some of the electrical equipment that we test in our laboratory but not limited to :



- IEEE 32 Neutral Grounding Devices,

- IEC 60076-1/ IEC 60076-10 Power transformers,

- IEC 60353 Line Traps,

- EN 62271-1 / EN 62271-100 / EN 62271-102 / EN 62271-103 / EN 62271-200 / EN 62271-201 / EN 62271-202 Alternating current circuit-breakers, alternating current disconnectors and earthing switches, high-voltage switchgear and controlgears,

- IEC 61869-1 / IEC 61869-2 / IEC 61869-3 Instrument transformers,

- IEC 60282-1 High-voltage fuses,

- IEC 60099-4 Surge arresters - Part 4: Metal-oxide surge arresters without gaps for a.c. systems,

- IEC 60660 Insulators, Tests on indoor post insulators of organic material,

- IEC 60168 Post Insulators, Tests on indoor and outdoor post insulators of ceramic material,

- IEC 60137 Insulated bushings for alternating voltages above 1000 V,

- IEC 60383-1/2 Insulators for overhead lines with a nominal voltage above 1000 V,

- IEC 61111 Live working - Electrical insulating matting,

- IEC 60243-1 Electric strength of insulating materials - Test methods - Part 1: Tests at power frequencies,

- IEC 60893-2 Industrial rigid laminated sheets based on thermosetting resins for electrical purposes - Part 2: Methods of test,

- IEC 60322:2001 Railway Applications – Electric equipment for rolling stock – Rules for power resistors of open construction.

- And more ...
