CURRENT LIMITING RESISTORS
FEATURES
  • Stainless steel grid elements
  • Typically 2 mm hot dip galvanized steel enclosure on demand
  • High thermal capacity to absorb high currents
  • Rugged-shock resistant construction
  • High Altitude ratings
  • Corrosion resistant nameplate
  • Specially designed units for hazardous and extreme locations
  • Designed and tested to applicable IEC and IEEE standards

    • Current Limiting Resistor forWelding Machine 50 V 385

    APPLICATION AREAS

  • High Power Test Laboratories
  • Motor Starting
  • Electric Arc Furnaces
  • Induction Furnaces
    		•

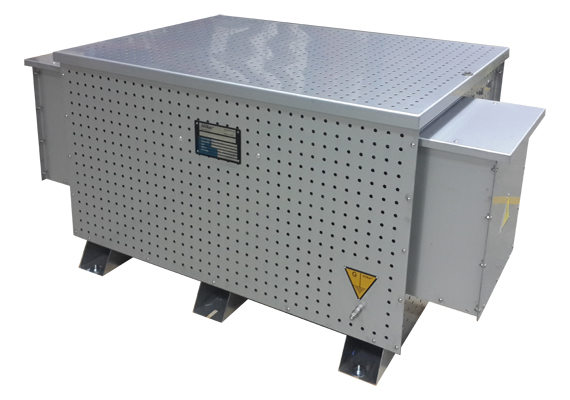

    Current Limiting Resistor For Induction Furnace
    3x1200 V 50 Hz 350 A IP 20 60 sec. 85x140x46 cm

    INSTALLATION
    The dimensions of the resistor can be adjusted to customer specific needs in order to meet unusual space requirements.

    Complete installation guidelines are provided with the resistors in order to meet required clearances. Each resistor is supplied with INSTALLATION GUIDELINES that specifies step by step methods for installation.

    SUPPORT STANDS
    Aluminum, hot dip galvanized steel or concrete support stands are designed for specific applications.

    QUALITY ASSURANCE
    Hilkar maintains a complete quality assurance program including ISO 9001 and other major industry standards in manufacturing plant.

    TECHNICAL SUPPORT
    Hilkar provides complete technical assistance to contractors and end customers for applications, design, calculations and field installation. All Hilkar resistors are custom designed for different applications by considering the voltage, current, inductance, size, loss characteristics that are required to provide the most efficient design at the most economical prices.

    (1000 V 60 kA 1 sec. 1 mohm ... 216 mohm)

    CURRENT LIMITING RESISTOR
