Anti-Condensation Heaters

Anti-Condensation Space Heaters are engineered to uphold the temperature within an electrical enclosure at a desired level.

Their purpose is twofold: to eliminate water vapor present inside enclosures and to prevent frost formation by maintaining the internal temperature above freezing. These heaters operate through convection, effectively preventing condensation build-up.



General Features



  • Operating Voltage: 24 - 690 V AC / DC
  • Rated Power: 15 - 150 W
  • Heater Body: Extruded aluminum profile or stainless steel
  • Mounting position: Horizontal or Vertical
  • High Performance in polluted areas
  • DIN Rail mount or flat surface mount
  • 35 mm DIN rail clip (HR.A, Hry and PTC series)
  • Other voltage / power output options upon request
  • High reliability
  • Natural convection
  • Durable construction



HRy-HRy.r Heaters







  • Operation voltages of 24-690 V
  • Over-voltage withstand capacity up to 20% continuous
  • Compact dimensions (100x250x6 mm - 4x10x0.24 ")
  • Touch-safe advantage with only 60°C (140°F) temperature rise
  • Welded edges of stainless steel casing provides corrosion resistance and moisture-proof resistance elements
  • 2.5 meter long heat resistant cable is provided together with the heater as standard. Longer and shorter cables are available on demand.
  • 3 kV / 1 minute dielectric withstand capability
  • DIN 35 rail mounted types on demand
  • Vertical or horizontal mounting capability
  • Standart types: 50 W and 100 W (Other wattages between 10 W - 150 W are available on demand)
  • 5 years warranty



HRu Heaters





  • 110-240 V, 100 W
  • 58x340x44 mm / 2.3x14x1.7 "
  • Wall mounting model
  • Compact construction
  • Maximum surface temperature rise 220°C without enclosure
  • Touch-safe enclosures are available on demand
  • Cable supply on demand as per requested length
  • DIN rail mounted enclosure on demand

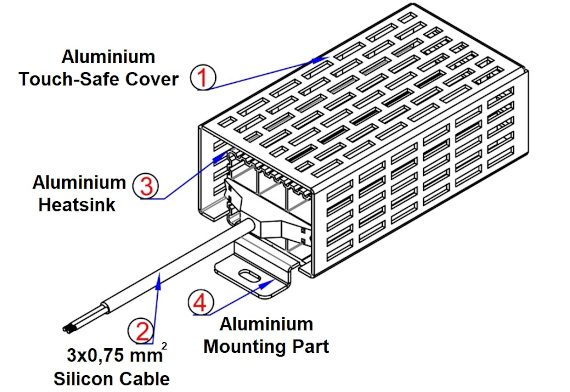

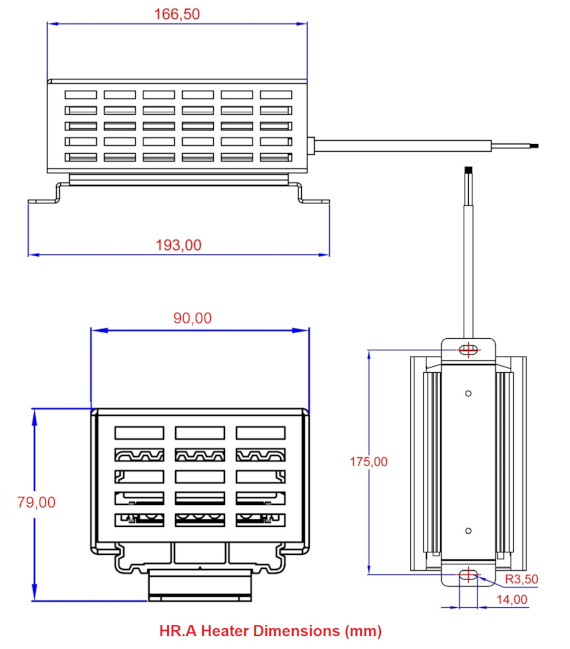

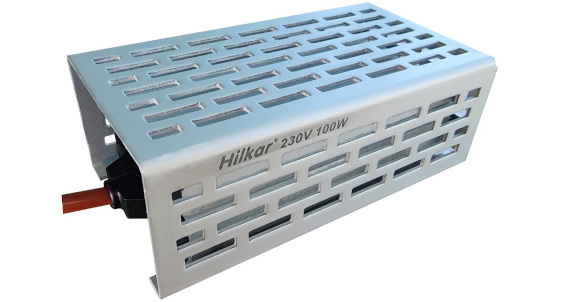

HR.A Heater







  • Wide voltage range 110-240 V AC / DC
  • Aluminium heatsink and touch safe surface
  • Rated ambient temperature: -45 / + 70 C°
  • Standard wattages: 50 W and 100 W (for other wattages consult factory )
  • High reliability
  • Natural convection
  • Durable construction

    •





Thermostats





  • Switching capacity:
    • 250 Vac, 10 A, cosØ>0.7
    • 110 Vdc, 2 A, L/R < 15 ms
    • 24 Vdc, 4 A, L/R < 15 ms
  • Setting range: 0-60ºC
  • Contact position: NO or NC
  • 60x40x35 mm / 2.4x1.6x1.4 "
PTC Heaters







  • Compact size
  • Pressure clamp connectors
  • EN 50022 35 mm rail clip fixing
  • Heating element consists of self-regulating PTC resistance
  • Wide voltage range 110 V -240 V AC/DC
  • Heater and covers made from natural anodized aluminium alloy
  • Protection degree IP 50
  • Rated ambient temperature : -45 to +70 °C
  • Standard wattages : 50 W and 100W (15 W, 30 W, 45 W, 60 W, 75 W, 150 W heaters are available on demand)



HR.PTC.PC Type Heaters
(110-265V AC-DC)
Type Power Rating (W) Surface Temperature (°C) Inrush Current (A) Length (mm) Weight (kg)
HR.PTC.PC.15 15 65 1.5 65 0.25
HR.PTC.PC.30 30 75 2.5 65 0.25
HR.PTC.PC.45 45 85 3 65 0.25
HR.PTC.PC.50 50 100 3.2 65 0.25
HR.PTC.PC.60 60 105 3.5 65 0.25
HR.PTC.PC.100 100 120 4.5 135 0.40
HR.PTC.PC.150 150 140 9 205 0.62

Consult factory for other technical values of other wattages.



PTC Heaters With Built-in Cables







110-265 V AC-DC
Type Heating Power (W) Surface Temperature (°C) Inrush Current (A) Length (mm) Weight (kg)
HR.PTC.CB.15 15 105 1.5 60 0.22
HR.PTC.CB.30 30 105 3 60 0.22
HR.PTC.CB.45 45 105 3.6 60 0.22
HR.PTC.CB.50 50 105 3.6 60 0.22
HR.PTC.CB.60 60 105 3.6 60 0.22
HR.PTC.CB.100 100 105 4.5 130 0.37
HR.PTC.CB.150 150 105 9 200 0.59

Consult factory for other technical values of other wattages.





HR.A.r Heater (DIN Rail Mount)





  • Wide voltage range 110-240 V AC / DC
  • Aluminium heatsink and touch safe surface
  • Rated ambient temperature: -45 / + 70 C°
  • Standard wattages: 50 W and 100 W (for other wattages consult factory )
  • High reliability
  • Natural convection
  • Durable construction
  • EN 50022 35 mm rail clip fixing
